ANTI-LOCK BRAKING SYSTEM

Have you ever found yourself hurtling down a rain-soaked highway, heart pounding as you slam on the brakes to avoid a collision, only to feel your wheels lock up and your car skid uncontrollably? It's a moment of panic we've all experienced. This is where the Anti-Lock Braking System comes into picture. How does this system actually work, and why is it such a game-changer for drivers like you and me? Join us as we dive into the fascinating world of ABS.

Anti-lock braking system prevents brake locking by modulating brake line pressure independently of pedal force. While the driver typically controls the brakes, ABS intervenes during severe braking or on slippery surfaces. When the system detects impending wheel lock, it adjusts pressure to maintain optimal slip levels for effective braking. This prevents full wheel lock, enhancing control and stability during braking maneuvers.

In simple terms, during emergency braking, the wheel does not get locked even if you push a full auto brake pedal, and hence skidding does not take place. It allows the driver to control the car easier, even on roads with low adhesion, such as rain, snow, and muddy roads. The brain of the antilock braking system consists of the Electronic Control Unit (ECU), wheel speed sensor, and hydraulic modulator. ABS is a closed circuit; hence, it uses the feedback control system that modulates the brake pressure in response to the wheel deceleration and wheel angular velocity to prevent the controlled wheel from locking.

The significance of ABS becomes especially apparent in adverse conditions, such as wet or icy roads, where maintaining traction is challenging. It ensures drivers can steer even during intense braking, potentially saving lives.

Basic Working of Anti-lock Braking Systems :

The basic working of ABS involves several key components and processes:

1. Sensor Detection: ABS relies on sensors, typically located at each wheel, to monitor individual wheel speeds. These sensors continuously send signals to the ABS control unit.2. Brake Application: When the driver applies the brakes suddenly and forcefully, the ABS control unit detects this action through the signals from the wheel speed sensors.

3. Wheel Deceleration Monitoring: As the brakes are applied, each wheel's speed decreases. If the ABS control unit detects that one or more wheels are decelerating too rapidly, indicating an imminent lock-up, it intervenes to prevent this from happening

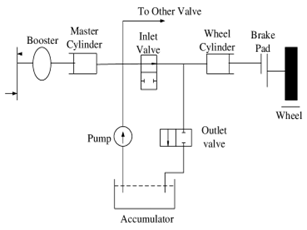

4. Pressure Modulation: The ABS control unit communicates with hydraulic valves located in the brake system. These valves can adjust the brake pressure being applied to each wheel independently.

5. Preventing Lock-up: If the ABS control unit detects a wheel approaching lock-up, it modulates the brake pressure by momentarily releasing and reapplying it. This rapid cycling of brake pressure prevents the wheel from locking up while still allowing it to slow down.

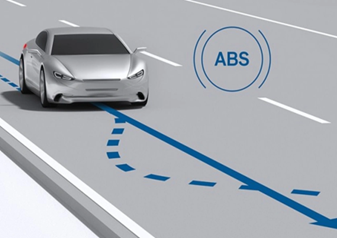

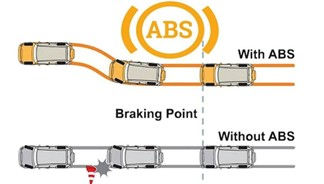

6. Maintaining Steering Control: Crucially, ABS allows the driver to maintain steering control even during emergency braking. By preventing wheel lock-up and subsequent skidding, ABS helps the driver steer the vehicle safely around obstacles or hazards.

7. Repeated Monitoring and Adjustment: The ABS control unit continuously monitors wheel speeds and adjusts brake pressure as needed, typically cycling through this process multiple times per second during emergency braking situations.

Evolution of ABS Technology:

ABS technology, originating in the early 20th century, saw early testing on railway cars and aircraft in the 1950s. Motorcycle prototypes soon incorporated ABS to mitigate skidding and traction loss. By the 1960s, it debuted on the world's first four-wheel drive Formula One car, marking a significant milestone in automotive safety. Since then, ABS has evolved considerably, advancing in both effectiveness and widespread adoption across various vehicles. Its development reflects a continuous effort to enhance braking performance, reduce accidents, and improve overall road safety.

Early ABS versions were basic and often lacked effectiveness and reliability. However, a significant breakthrough came with the shift from hydraulic to electronic control systems. Hydraulic systems, though effective, were bulky and imprecise compared to their electronic counterparts.

The introduction of electronic ABS marked a major advancement, bringing responsiveness and adaptability to new levels. These systems utilize advanced algorithms and sensors to monitor wheel speed and adjust brake pressure in real-time, significantly enhancing safety and control.

Furthermore, modern ABS seamlessly integrates with other safety features like Electronic Stability Control (ESC) and Traction Control System (TCS), further enhancing vehicle stability and maneuverability in various driving scenarios.

Benefits of ABS:

●        Enhanced Driver Confidence:  ABS preserves steering control during braking, boosting driver confidence. It enables assertive driving, especially in adverse weather conditions, potentially saving lives in critical situations.

●        Reduced Stopping Distances:  ABS reduces stopping distances on dry and wet surfaces, preventing collisions. Studies consistently show that ABS-equipped vehicles are less likely to be involved in accidents, highlighting its effectiveness.

●       Mitigation of Rollover Accidents: ABS helps mitigate the risk of rollover accidents, especially in SUVs and trucks. By maintaining stability during abrupt maneuvers or uneven terrain, ABS safeguards occupants and cargo.

●        Extended Vehicle Lifespan: ABS reduces wear and tear on tires and brake components, enhancing the vehicle's longevity. It minimizes flat spots on tires and ensures uniform wear, resulting in longer-lasting tires and brakes.

●        Improved Performance in Off-road Conditions: ABS enhances vehicle performance in off-road conditions, prioritizing traction and control.  Whether navigating muddy trails or sandy dunes, ABS ensures steering control and prevents wheel lock-up, enhancing safety and confidence.

Challenges and Limitations:

1. Reduced Effectiveness on Certain Surfaces: ABS is less effective on icy or loose surfaces with compromised traction. It may lead to longer stopping distances compared to dry roads, posing challenges during emergency braking.

2. Adherence to Physics: ABS doesn't defy physics; it operates within the vehicle's capabilities. In scenarios like high-speed collisions or extreme weather, ABS alone may not prevent accidents entirely.

3. Caution and Adaptation Required: Drivers need to adapt their driving behavior, especially in hazardous conditions. Vigilance and responsiveness to changing road conditions are crucial for safety.

4. Continued Need for Attention and Maintenance: ABS doesn't replace attentive driving; drivers must remain vigilant. Regular inspection and maintenance of ABS components are essential for optimal performance and reliability.

Future Directions and Innovations:

Looking ahead, the future of ABS promises even more exciting advancements aimed at further enhancing safety and efficiency. One area of innovation is the integration of predictive analytics and artificial intelligence into ABS algorithms. By analyzing vast amounts of data in real-time, AI-enhanced ABS can anticipate potential hazards and adapt braking strategies proactively, further reducing the risk of accidents.

Moreover, ongoing research in materials science and engineering may lead to the development of more advanced brake components capable of withstanding higher temperatures and providing consistent performance under extreme conditions. This could result in ABS systems that are not only more robust but also lighter and more compact, contributing to improved fuel efficiency and reduced environmental impact.

Additionally, advancements in sensor technology and connectivity may enable ABS to communicate with other vehicle systems, such as adaptive cruise control and collision avoidance systems, creating a more holistic approach to vehicle safety. By integrating ABS with these intelligent systems, vehicles can anticipate and respond to hazards more effectively, ultimately enhancing overall safety on the road.

Conclusion:

In conclusion, the Anti-lock Braking System (ABS) has transformed automotive safety by preventing wheels from locking up during braking, thereby maintaining traction and control. From its early iterations to modern electronic systems, ABS has evolved into a cornerstone of vehicle safety.

Looking ahead, ABS technology will continue to advance, integrating predictive analytics and artificial intelligence to enhance safety further. As we strive for a future of zero accidents, ABS remains a critical component in our journey towards safer roads and vehicles.

In summary, ABS represents a triumph of engineering, saving lives and preventing accidents. Its continued evolution ensures that drivers can navigate the roads with confidence and peace of mind, regardless of the conditions they encounter.
